Aircon Drain Pan: Why It Leaks & How to Fix It

Water dripping from an indoor unit usually points to a single, overflowing component. If you are wondering about your aircon drain pan: why it leaks & how to fix it, you are dealing with a very common issue. Since 2003, our team of 26 technicians at Billy Aircon has seen this specific drainage failure almost daily across Singapore. This is actually the second most frequent complaint we handle, right behind an aircon not cold situation.

In most cases, the culprit is the drain pan.

This shallow tray sits beneath the evaporator coil inside your indoor unit. When this pan overflows, water has nowhere to go except down your wall or onto your floor. Let us look at the data, what it actually tells us, and explore practical ways to fix it permanently.

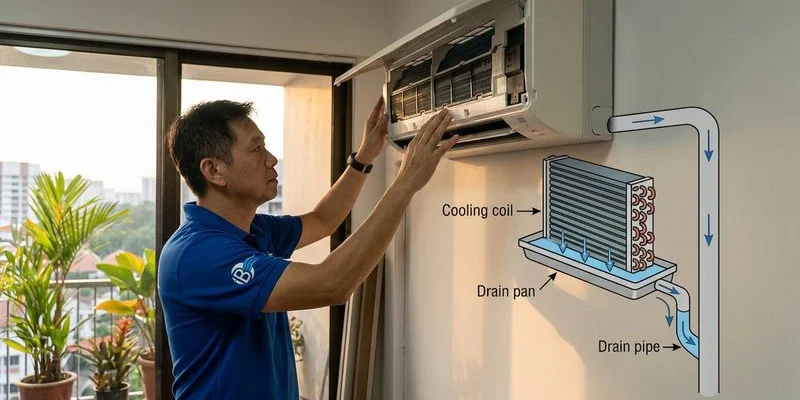

How the Drain Pan Works

Understanding the mechanics of your cooling system helps you identify problems faster. When your aircon cools a room, warm air passes over the icy evaporator coil. Moisture in the air condenses on the metal fins, exactly like water droplets forming on a cold glass.

This condensate drips down into the drain pan. You will typically find one of two materials catching this water:

• Acrylonitrile Butadiene Styrene (ABS) plastic: The standard tray material for most modern residential wall-mounted units.
• Galvanised steel: A heavier, corrosion-prone pan often found in older commercial systems.

From this collection point, water flows by gravity through a small PVC pipe. This pipe runs through your wall and exits outside your home.

Industry Insight: In Singapore, a typical 9000 BTU bedroom unit produces up to 3 litres of condensate per hour during heavy use. You will see even more water generation on particularly humid days when the relative humidity spikes above 85 percent.

We know the system is incredibly simple. There are no pumps or complex electronics involved, just the natural pull of gravity. When water cannot flow out fast enough, the shallow tray quickly overflows.

Aircon Drain Pan: Why It Leaks & How to Fix It

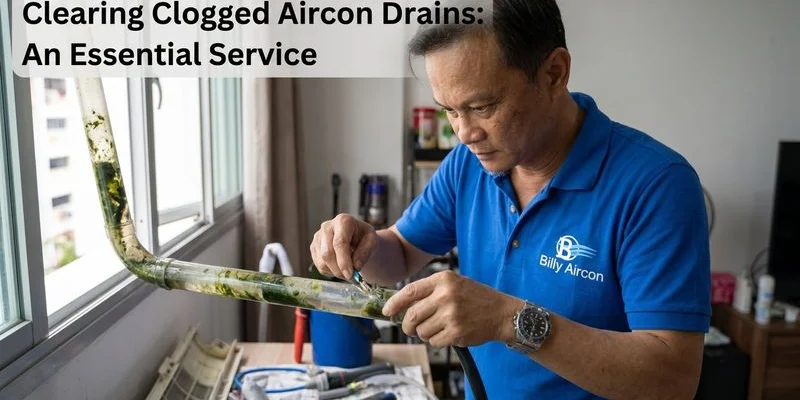

1. Blocked Drain Pipe

This is the number one cause of drain pan overflow in Singapore. The warm, moist environment inside the drain pipe is perfect for algae, slime, and mould growth.

Over time, this biological buildup narrows and eventually blocks the typical 16mm UPVC pipes used in most HDB flats. Plumbers often refer to this white, jelly-like substance as zooglea.

Singapore’s year-round humidity accelerates this process significantly. A drain pipe that might stay clear for two years in a dry climate can block within six to eight months here without regular cleaning.

2. Cracked or Warped Drain Pan

Plastic drain pans can crack from age, thermal expansion cycles, or physical damage during servicing. The constant shift between freezing cold condensate and warm room air causes the ABS plastic to expand and contract.

Our technicians find that these pans typically become brittle after five to seven years of daily use. Metal pans found in older units can corrode over time. Even a hairline crack allows water to drip out before it reaches the drain pipe.

Warping is a more subtle issue. The pan develops a slight bow that prevents water from flowing toward the drain outlet. Instead, water pools at the wrong end and eventually spills over the edge.

3. Improper Unit Tilt

The indoor unit must be mounted with a very slight tilt toward the drain side. Installers generally aim for a one to two-degree slope to ensure proper gravity feeding.

If the unit was installed perfectly level or tilted away from the drain, water pools in the pan instead of flowing toward the outlet. This can happen if the mounting bracket loosens over time or if the wall bracket was not secured correctly during installation.

4. Excess Condensation

If the evaporator coil is excessively dirty, it produces more condensation than normal. The restricted airflow causes the coil temperature to drop below its designed operating range.

A dirty coil combined with Singapore’s humidity can produce enough condensate to overwhelm even a completely clear 16mm drain system. Keeping your primary dust filters clean prevents this rapid accumulation.

5. Float Switch Issues

Many modern units have a magnetic reed float switch in the drain pan. This safety device shuts off the aircon when water levels get dangerously high.

If this switch is stuck or faulty, the unit keeps running even as the pan overflows. A hyper-sensitive float switch might shut your unit down unnecessarily, making it seem like the aircon keeps turning off for no reason.

Temporary Fixes

If your aircon is leaking and you cannot get a technician immediately, you can take a few steps to mitigate the damage.

• Turn off the unit: This immediately stops the production of new condensation.
• Catch the drips: Place a towel or wide container directly under the indoor unit to protect your floors.
• Vacuum the drain outlet: If you can safely access the external PVC pipe opening, a wet/dry vacuum rated for at least 3 peak horsepower can often suck out minor slime blockages.

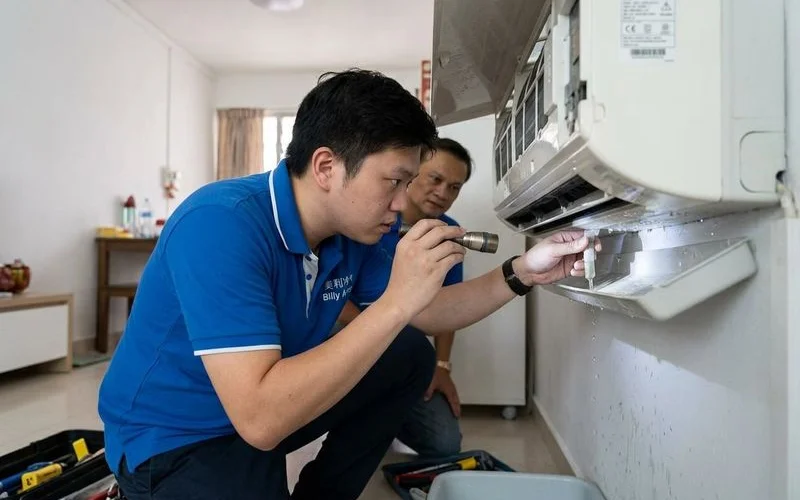

• Check for visible debris: Remove the front plastic panel and look for obvious blockages in the exposed drain pan area.

These are strictly temporary measures. The underlying biological growth or mechanical failure still needs proper diagnosis and repair.

Professional Repair

When our technicians handle a leaking aircon call, we follow a strict, systematic approach to ensure long-term reliability. A surface-level clean is rarely enough to stop recurring leaks.

1. Inspect the drain pan: We look closely for micro-cracks, warping, or advanced plastic degradation.
2. Check the drain pipe: Technicians perform a flush test to gauge the severity of the blockage.
3. Clear the blockage: High-pressure drain pumps or a 30 to 50 PSI water flush blast out the zooglea slime.
4. Apply anti-algae treatment: We often place quaternary ammonium pan tablets in the tray to dissolve future biological growth.
5. Verify the unit tilt: A digital level confirms the required one to two-degree slope.
6. Test the float switch: We manually lift the float to ensure the safety shutoff engages instantly.

Repair Costs

Transparency matters when planning maintenance. Here is a breakdown of standard market rates for these specific drainage repairs in Singapore.

Repair Type	Estimated Cost (SGD)	Notes
Drain pipe clearing	$50 to $80	Included in most standard servicing packages
Drain pan replacement	$80 to $150	Varies based on the specific brand and unit model
Drain pipe re-routing	$100 to $200	Necessary if the original pipe run lacks proper gravity slope
Float switch replacement	$60 to $100	Includes the new magnetic or mechanical switch part

Prevention

The most effective way to prevent drain pan overflow is scheduled, consistent aircon servicing. During a standard service visit, technicians flush the drain line and wipe down the ABS plastic pan. This addresses the biological buildup before it solidifies into a complete blockage.

For homes in particularly humid areas or units that run for more than 12 hours daily, we highly recommend quarterly servicing.

A chemical wash provides an even deeper cleaning. This process uses alkaline-based solutions to dissolve hardened biological buildup inside the drain system that regular water flushing cannot fully remove. This is especially worthwhile for older units that have experienced repeated drainage issues over the years.

Do not let a dripping aircon damage your expensive parquet flooring or custom carpentry. When assessing your aircon drain pan: why it leaks & how to fix it permanently comes down to calling in the professionals before minor drips become major floods. You can always Contact Billy Aircon for fast, affordable drain repair, as our teams resolve most standard overflow cases in under a single hour.
